Pipe and Cable Locator with GPS

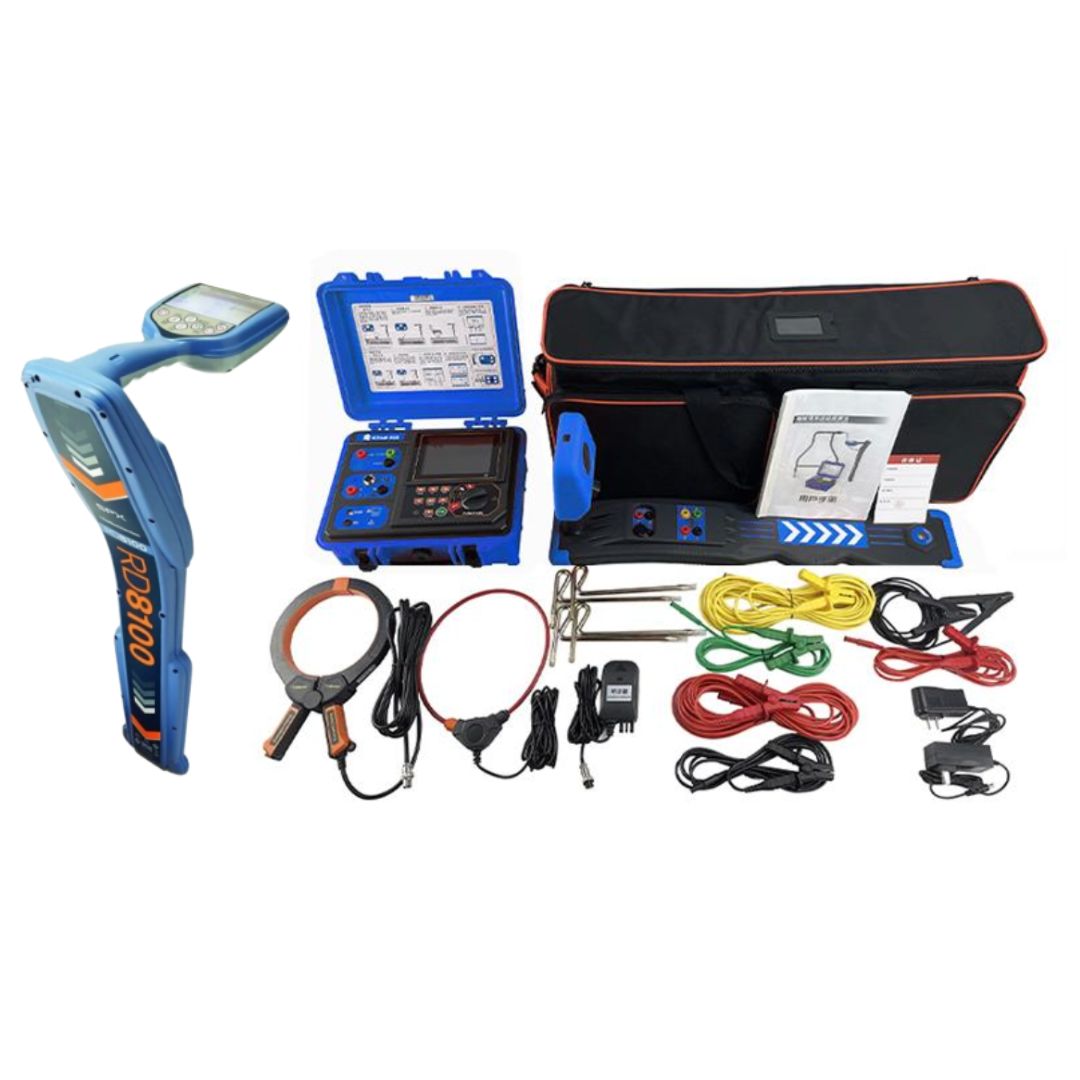

Underground Pipeline Detector– Introduction Overview: The intelligent pipeline and cable comprehensive detection instrument is a path detection device with strong comprehensive performance. It has multiple functions such as pipeline path depth detection, live cable identification, de-energized cable identification, pipeline grounding fault location, GPS mapping, grounding resistance testing, and insulation resistance testing. The instrument consists of a transmitter, a transmitting current clamp, a receiver, a receiving flexible current clamp, connection test leads, a stethoscope, an A-frame (optional), a mapping APP (optional), and RTK (optional).

A-frame (optional accessory): A voltage signal sensor shaped like the letter “A”, specifically designed for locating grounding faults in directly buried cables. The two probes or probe discs of the A-frame can accurately receive the step voltage signals emitted by the transmitter, and after being transmitted to the receiver and analyzed, the grounding fault point of the cable can be precisely located. The probes or probe discs are independently designed and interchangeable.
