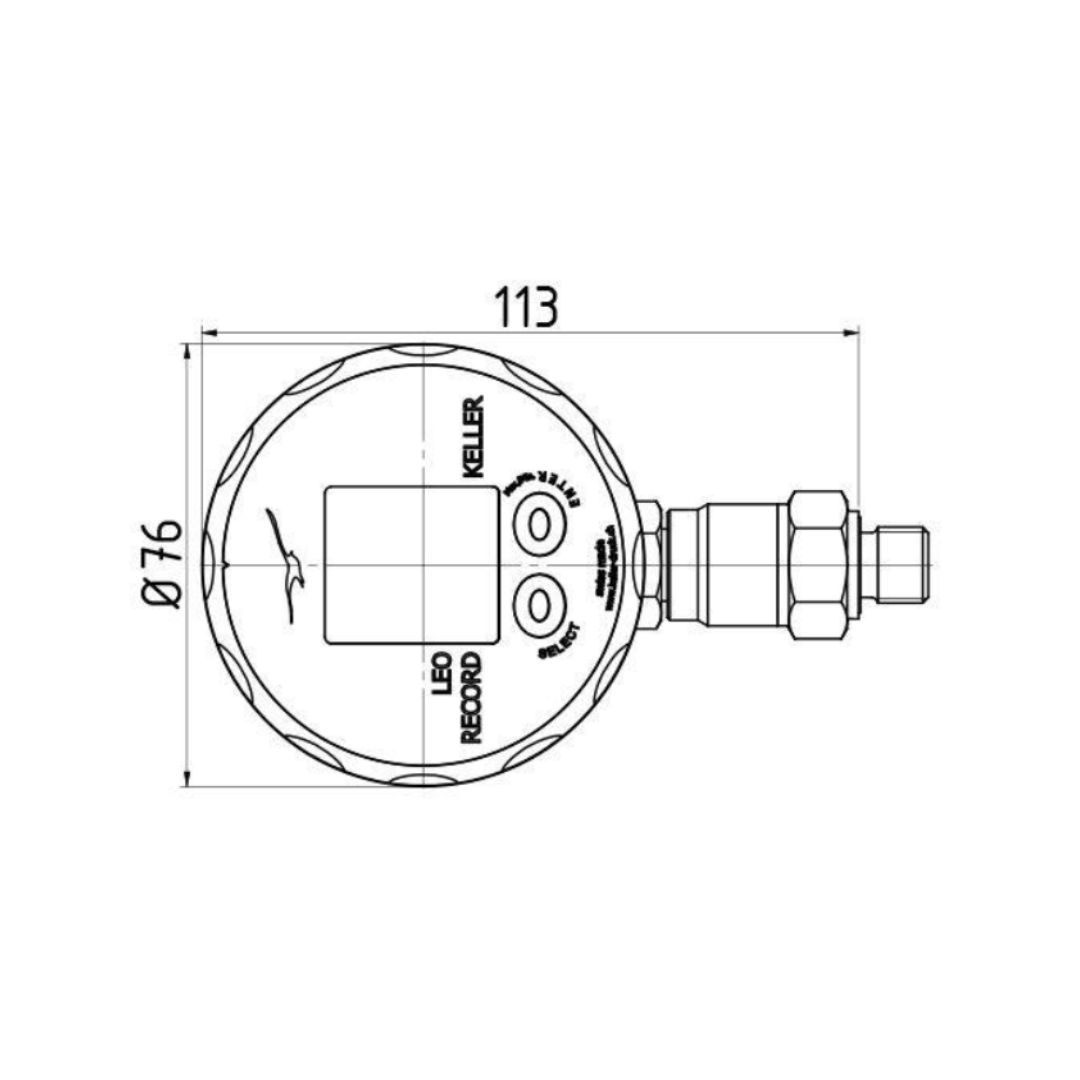

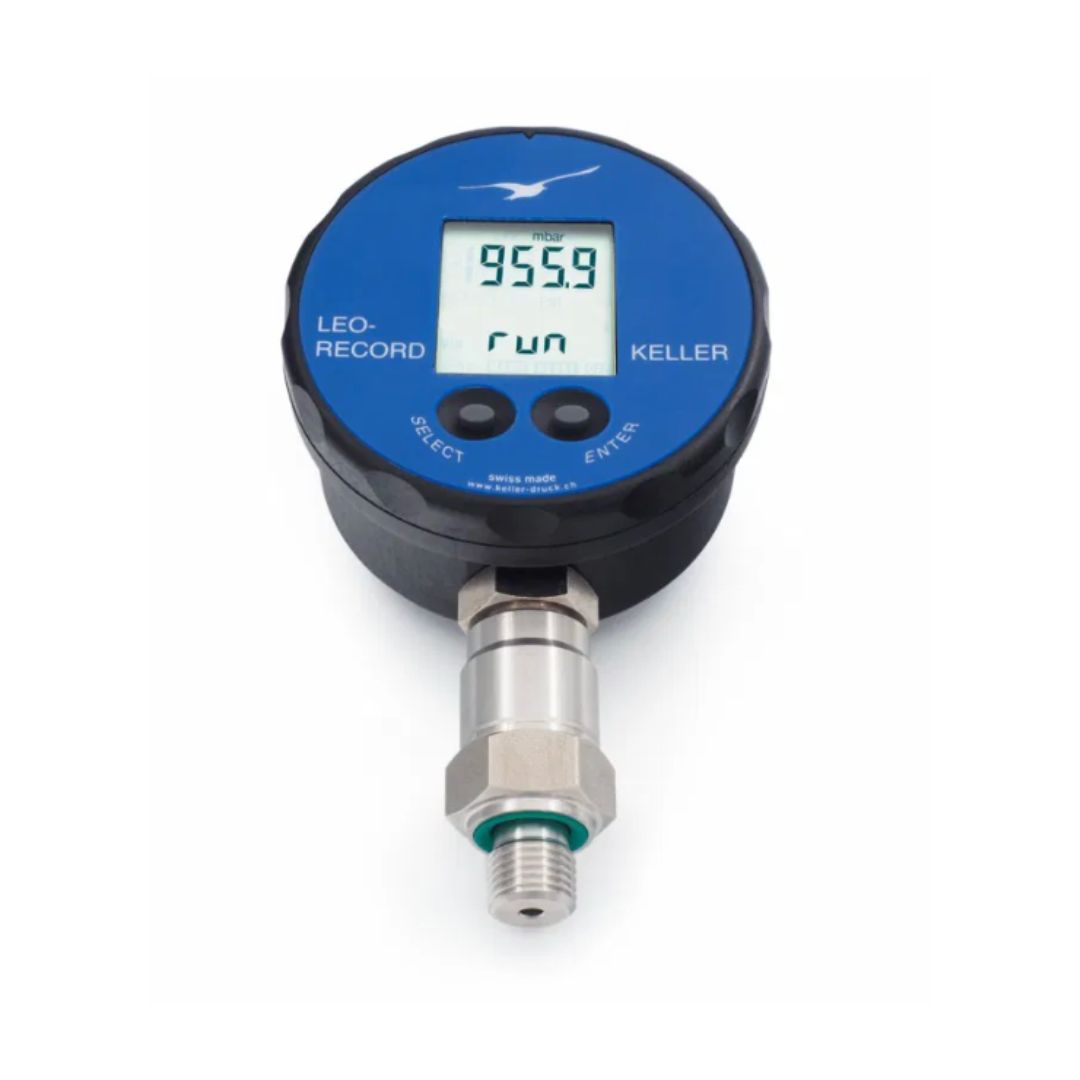

Leo Record Digital Manometer

The high-accuracy LEO-Record digital manometers can record pressure and temperature autonomously for long periods thanks to their memory function. The data logger can be connected to a computer via the RS485 interface for configuration and for reading out the recorded data. The current pressure value can be displayed in a wide variety of units of pressure. Power is supplied by a high-quality 3,6 V lithium battery.

Ranges:3,30,300,700,1000 and 2000bar

• • Pressure Ranges
  • Accuracy
  • Total Error Band
  • Interfaces
  • Special Characteristics
  • Display
  • Reading Capacity

• -1…3 to 0…1000 bar
• ± 0,05 %FS
• ± 0,1 %FS @ 0…50 °C
• RS485
• Measured value recording
• 5-digit LCD display
• 57’000 measuring points
